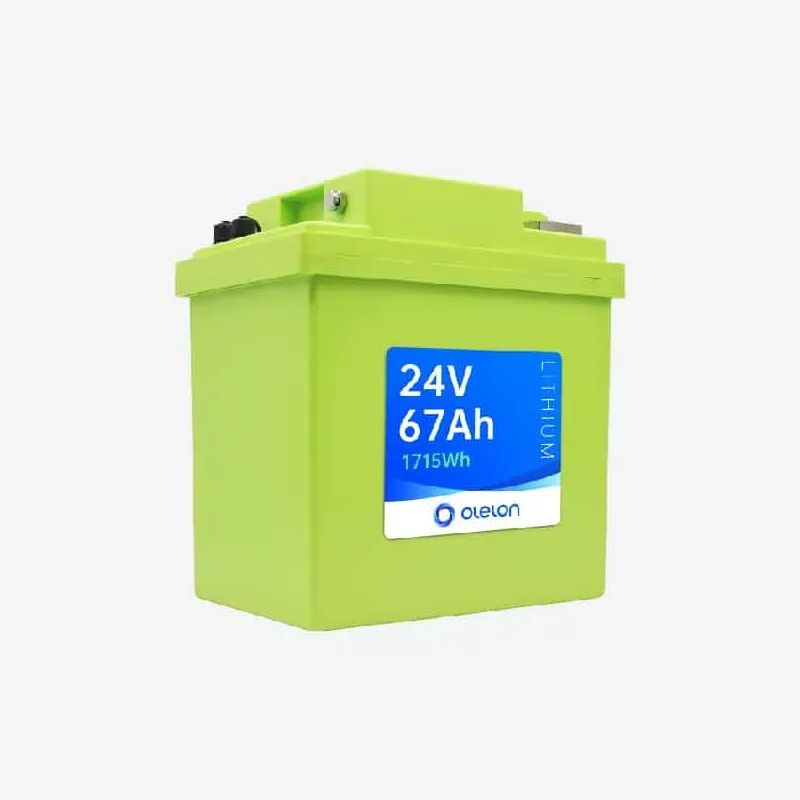

24V 67Ah Modular LiFePO4 Battery

The Sinoah 24V 67Ah modular LiFePO4 battery utilizes upgraded LiFePO4 cell technology and moves beyond traditional low-voltage 12V modular designs; with a nominal voltage of 25.6V, a single module delivers twice the voltage of a standard 12V battery. Retaining the compact GC2 casing for direct replacement of lead-acid batteries, it is engineered for medium-to-high-power mobile equipment, effectively resolving industry pain points associated with traditional multi-string 12V battery packs—such as complex wiring, excessive heat generation, and frequent failures.

Key Advantages: 24V vs. 12V Systems

Most modular batteries on the market are 12V units; powering high-voltage equipment requires connecting multiple units in series, leading to complex wiring, lengthy installation times, and numerous potential points of failure. Sinoah’s 24V modular battery optimizes system architecture, offering the following core advantages:

1. Simplified Assembly: A 48V golf cart system requires only two 24V batteries in series; compared to a four-battery 12V setup, this cuts the number of connection points, cable usage, and installation time by half.

2. Higher Operational Efficiency: At equivalent power levels, the higher-voltage design reduces operating current, thereby minimizing heat generation in wiring and batteries, lowering energy consumption, and extending the lifespan of equipment and electrical components.

3. Enhanced Stability: A streamlined assembly structure minimizes human error and the risk of wiring faults, making it ideal for industrial and commercial equipment requiring long periods of continuous operation.

Core Product Features and Technical Design

1. Flexible Scalability and Multi-Scenario Adaptability

The Sinoah 24V 67Ah Modular LiFePO4 Battery supports flexible series and parallel configurations. Its high-voltage single-module design significantly reduces the number of battery units required for high-power systems, enabling customized power distribution across various scenarios:

- 48V Configuration: 2 units in series; suitable for standard golf carts and light cleaning equipment.

- 72V Configuration: 3 units in series; suitable for aerial work platforms and industrial utility vehicles.

- 96V Configuration: 4 units in series; meets power requirements for high-power marine applications and heavy-duty industrial equipment.

- Capacity Expansion: Supports up to 20 units in parallel, enabling the creation of a massive 24V 1340Ah power supply system.

2. Intelligent Safety Protection System

Each Sinoah 24V 67Ah Modular LiFePO4 Battery is equipped with a professional, built-in intelligent BMS (Battery Management System) that ensures continuous monitoring and multi-dimensional safety protection. The unit features an audible alarm to alert operators promptly of parameter anomalies and offers comprehensive protections—including over-voltage, under-voltage, over-current, short-circuit, and over-temperature safeguards—effectively preventing battery damage and safety hazards caused by abnormal operating conditions.

Additionally, the product utilizes active cell-level and pack-level balancing technologies combined with automatic fault diagnosis. This ensures consistent performance across series/parallel-connected battery groups and maintains stable, long-term operational reliability.

3. Durable and Practical Hardware Design

- Ultra-long lifespan: Cycle life exceeds 2,000 cycles at 70% Depth of Discharge (DoD), far surpassing traditional lead-acid and standard lithium batteries.

- Rapid charging: Supports full charging in one hour, significantly boosting operational efficiency and reducing downtime.

- IP67 Waterproofing: Fully sealed, waterproof structure suitable for demanding industrial environments, including outdoor, humid, and dusty conditions.

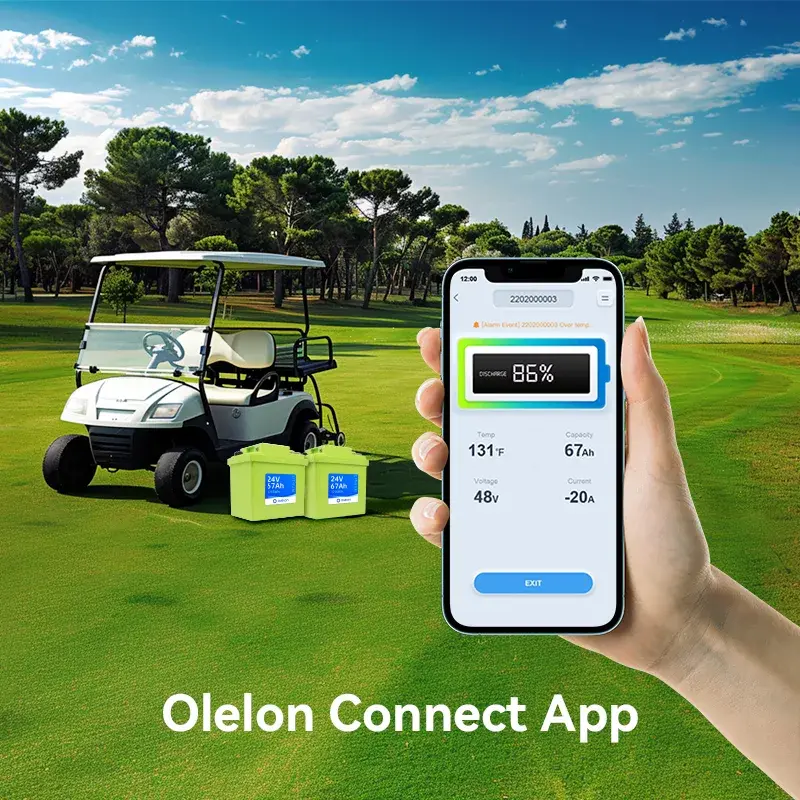

- Smart monitoring: Built-in Bluetooth module connects to the Olelon Connect App, allowing real-time monitoring of voltage, current, temperature, and cycle data.

- Easy installation: Features dual M8 terminals and standard GC2 dimensions; plug-and-play design allows for direct replacement of traditional lead-acid batteries.

Real-World Application Cases

Case 1: UK Golf Course Fleet Upgrade

A local UK golf course operated a fleet of 30 48V golf carts originally powered by four 12V lead-acid battery packs. They faced issues such as slow charging, short lifespans, frequent wiring faults, and high maintenance costs. After switching to Sinoah 24V 67Ah modular lithium batteries (two units connected in series per cart), the equipment failure rate dropped by 65%, battery lifespan extended from 3 years to over 6 years, and charging efficiency improved by 60%. The streamlined wiring structure significantly reduced daily maintenance workloads, achieving substantial cost savings and efficiency gains.

Case 2: Power Supply for Commercial Floor Scrubbers

A UK property services company purchased 20 72V commercial floor scrubbers, all powered by three Sinoah 24V 67Ah batteries connected in series. In continuous cleaning scenarios—such as shopping malls and office buildings—the batteries provided stable output with minimal heat generation and no unexpected power failures. The IP67 waterproof design suited humid cleaning environments, resolving the common issue of short circuits caused by water ingress in traditional batteries, while the cycle life fully met the standards for high-frequency commercial use.

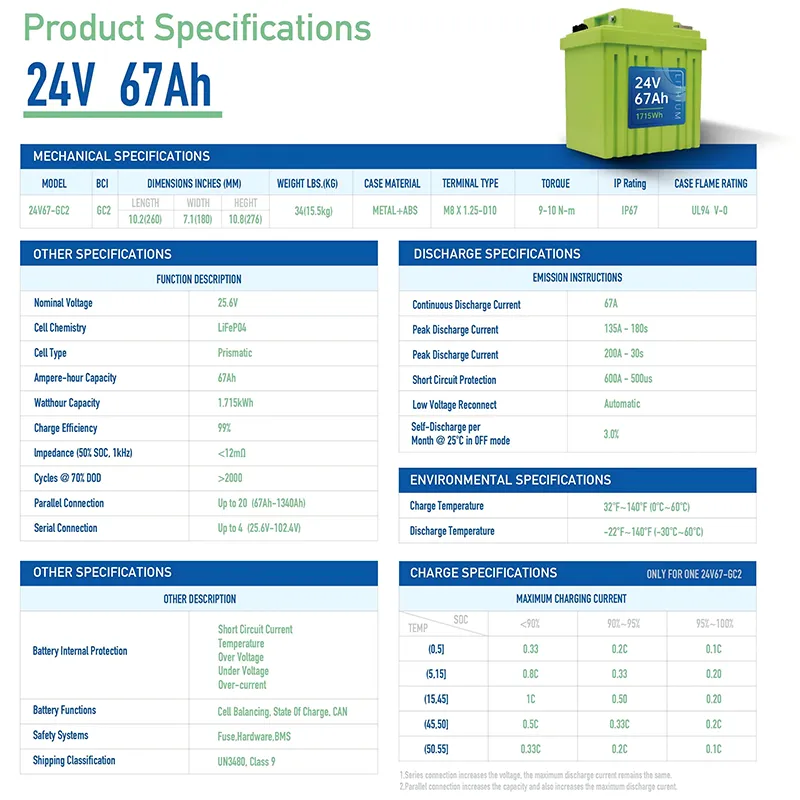

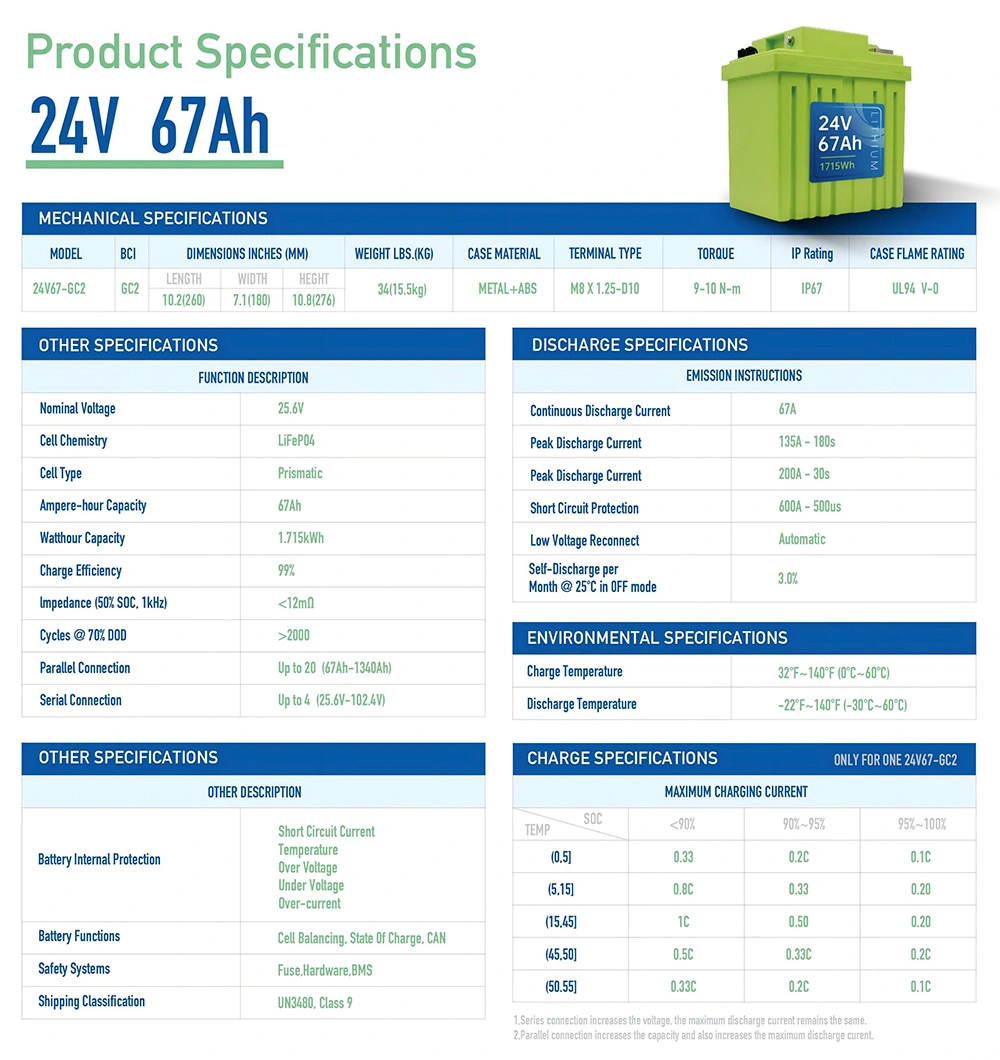

Complete Technical Specifications

Technical Specifications

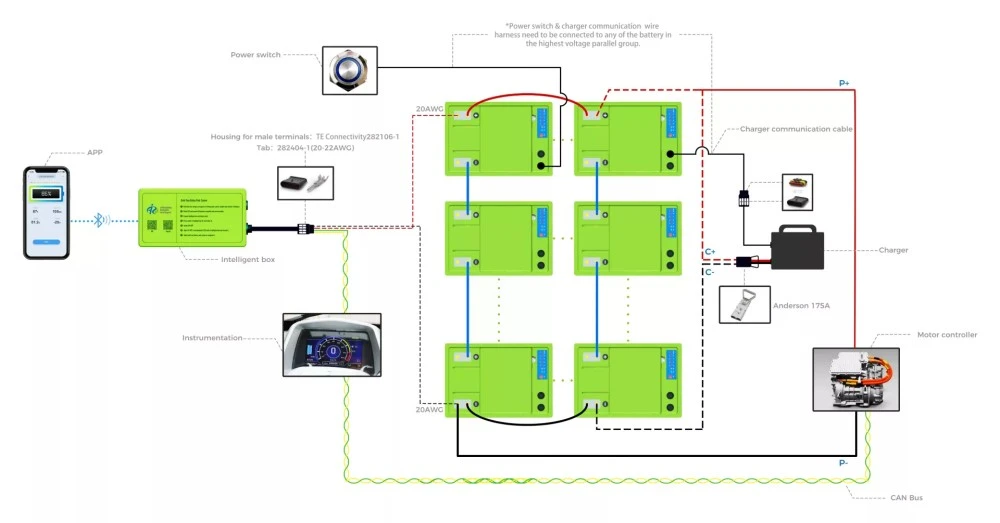

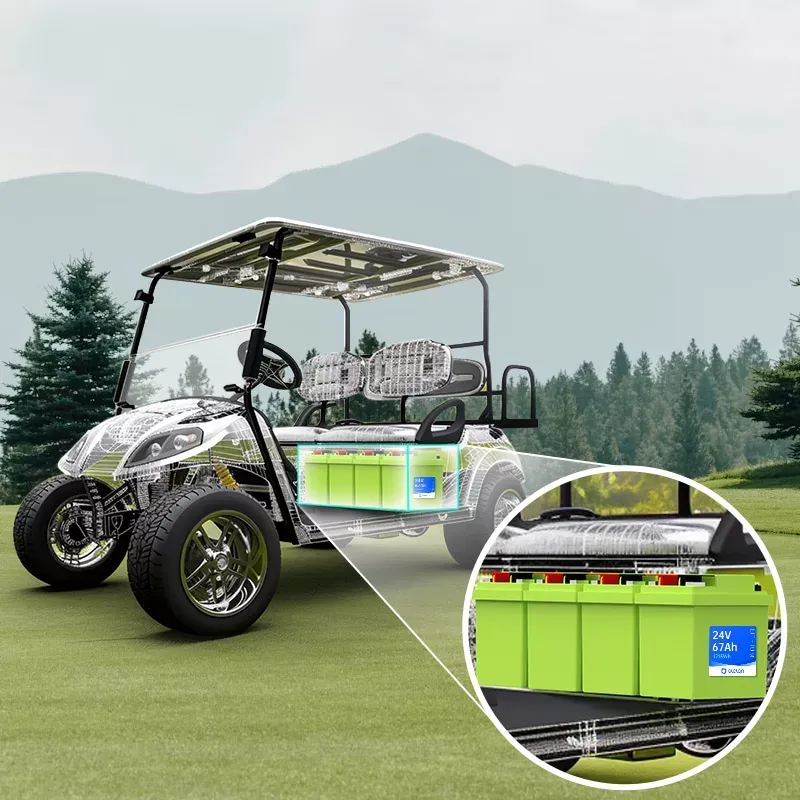

How to use it on Golf Cart or other LSV

FAQs:

Q1: Can I use this battery in a 48V golf cart?

A: Yes. Two 24V 67Ah batteries in series create a 48V 67Ah golf cart battery pack – perfect for most golf carts, with fewer connections than a 12V-based system.

Q2: Is this battery really waterproof?

A: Yes. IP67 rated – fully protected against dust and temporary immersion in water (up to 1 metre for 30 minutes).

Q3: How many cycles will this battery last?

A: >2000 cycles at 70% depth of discharge – 4-6 times longer than lead-acid.

Advantages of Partnering with Sinoah (UK)

Sinoah is a professional power equipment service provider deeply rooted in the UK market, dedicated to supplying high-quality modular lithium battery solutions to UK distributors, installers, and fleet operators. All products are supplied directly from the factory—eliminating intermediary markups—to offer partners factory-direct pricing and a distinct cost advantage. Key partnership benefits include:

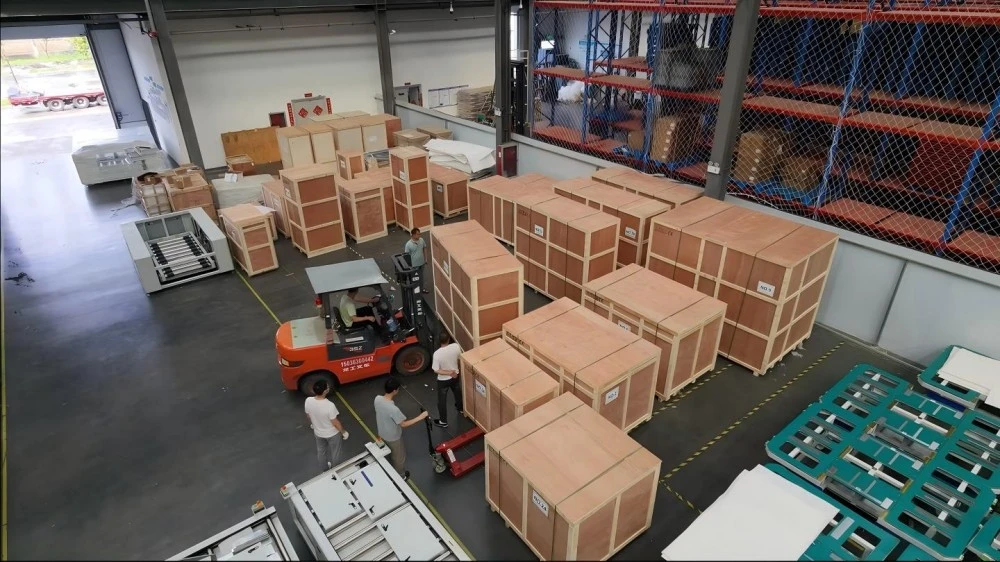

1. Local Stock & Rapid Delivery: UK-based inventory ensures no customs delays and supports fast, nationwide on-site delivery.

2. Extended Warranty & Reliable After-Sales: An industry-leading 8-year official warranty guarantees quality for the long-term use of commercial equipment.

3. Local Technical Support: A professional UK-based technical team provides one-stop services, including installation guidance, troubleshooting, and maintenance.

4. Bulk Purchase Incentives: Exclusive bulk purchasing discounts available for dealers, distributors, and large fleet operators.

5. Authoritative Quality Certifications: Certified to UN38.3 and UL1642 international standards; products are fully traceable and fully compliant with regulations.
