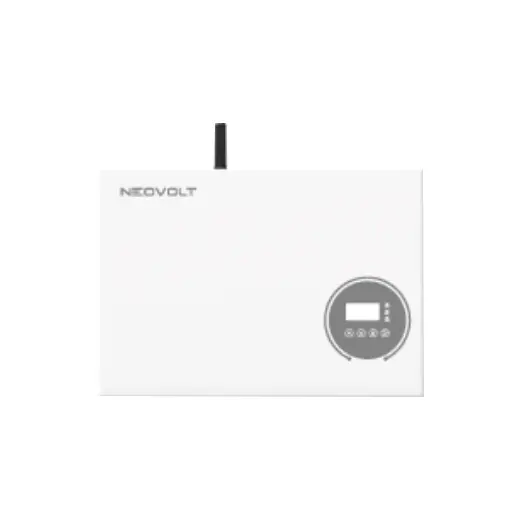

12kW Single Phase Hybrid Inverter

The 12kW Single Phase Hybrid Inverter (BW-INV-SPH12K) is a DC-coupled, single-phase unit that connects solar PV arrays, battery storage, and the grid in a single compact housing. As the highest-capacity model in the G4 series, it is purpose-built for UK homes with larger energy demands–properties with 6kWp+ solar arrays, electric vehicle charging, heat pumps, or multiple occupants with high daytime consumption.

Where smaller inverters (3.6kW–8kW) are suited to typical 3-bedroom homes, the 12kW model addresses a different segment: larger detached houses, homes with south-facing roofs capable of hosting 20+ panels, and properties where whole-home backup during grid outages is a priority. With 200% PV oversizing capability (up to 24kW DC input), the inverter can accommodate substantial solar arrays and future expansion without requiring replacement.

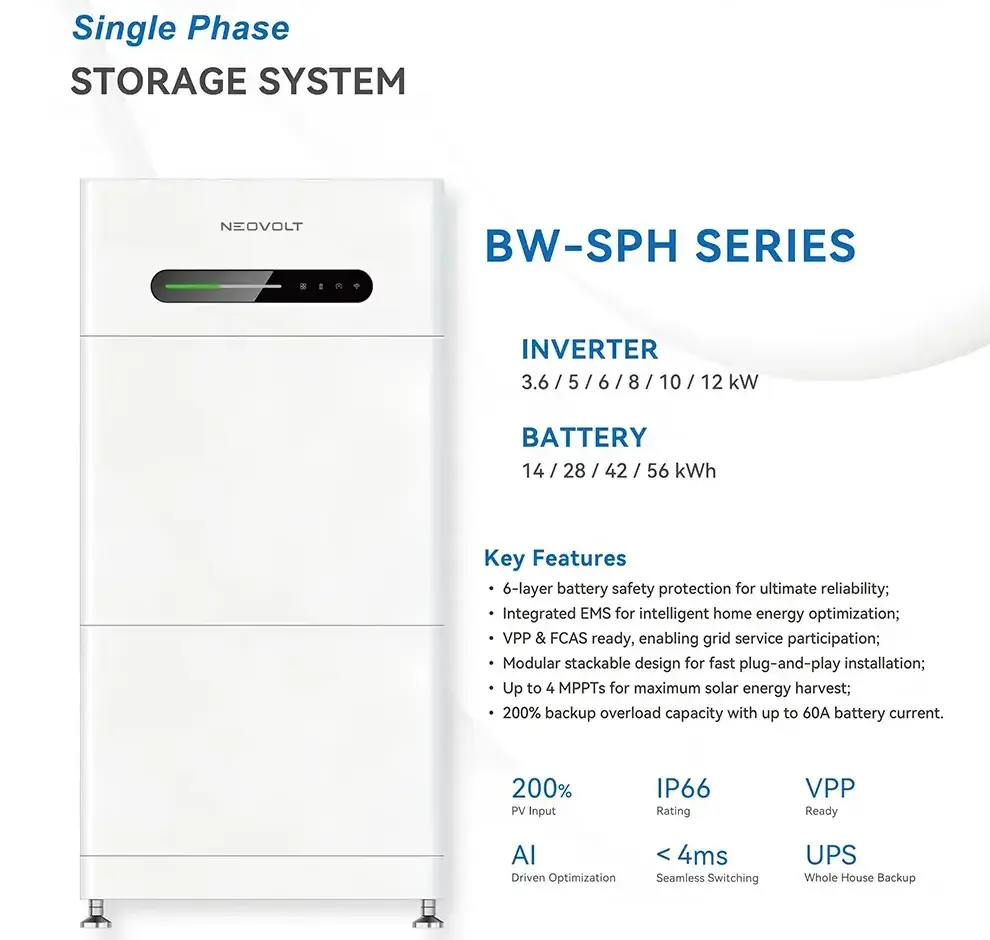

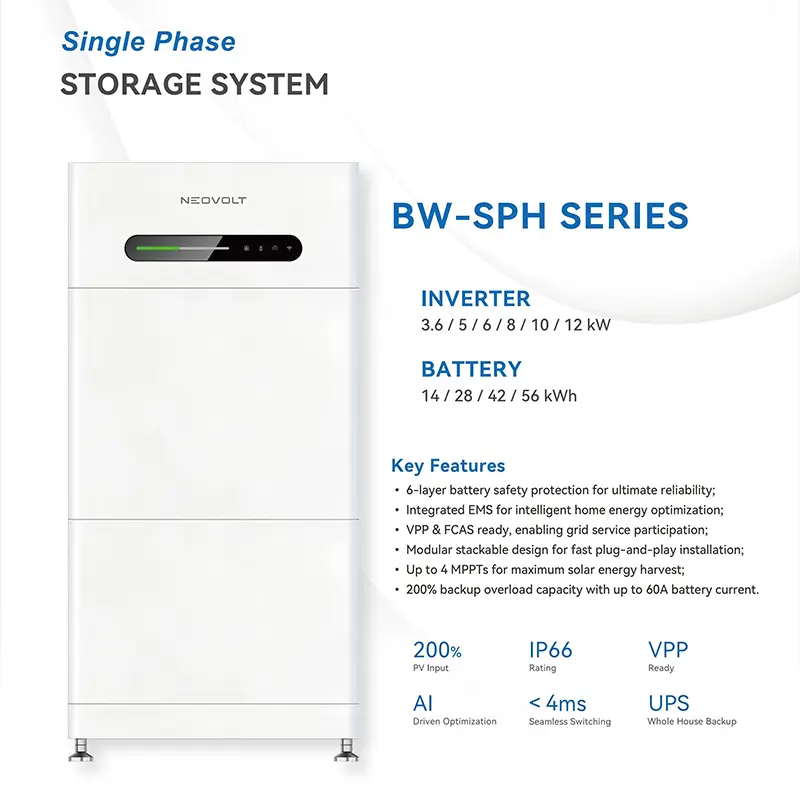

The G4 series represents a significant upgrade over previous generations. Key differentiators include four independent MPPT trackers (versus two on the G3 series), IP66 weatherproof rating (versus IP65), and sub-4ms UPS switching (versus sub-10ms). These enhancements make the 12kW model particularly suitable for complex roof geometries, exposed installation locations, and homeowners who demand instantaneous backup power.

Four MPPT Trackers:Maximum Harvest from Complex Roofs

UK rooftops rarely face a single direction. A typical detached house may have solar panels spread across south, east, and west roof slopes–each with different sunlight exposure throughout the day. The NeoVolt 12kW inverter features four independent MPPT trackers, each accepting up to 15A input current. This allows installers to connect up to four separate solar strings, each operating at its individual maximum power point.

The benefit is tangible: on a roof with panels facing south-east and south-west, a two-tracker inverter would force both strings to operate at a compromised voltage. With four trackers, each string operates independently, capturing 5–10% more annual energy. For installations with multiple roof orientations, this translates to hundreds of additional kilowatt-hours per year–and lower electricity bills for the homeowner.

IP66 Rating:Built for UK Weather

The 12kW Single Phase Hybrid Inverter an IP66 ingress protection rating–a step above the IP65 rating common in the industry. IP66 means the unit is fully protected against dust and powerful water jets from any direction. For UK installers, this matters: the inverter can be installed in exposed locations–external walls, open carports, or garden buildings–without concern about driving rain or coastal salt spray. The robust powder-coated steel enclosure ensures long-term durability in the UK’s variable climate.

Sub-4ms UPS: Seamless Whole-Home Backup

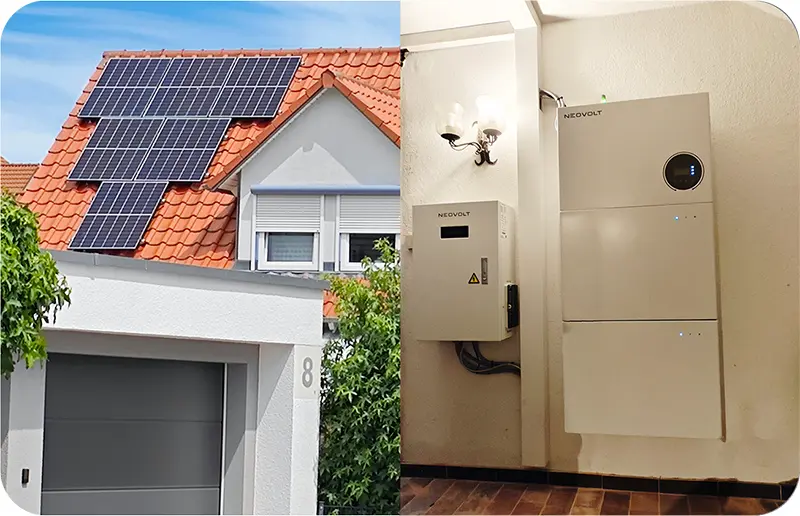

When the grid fails, every millisecond counts. The NeoVolt 12kW inverter switches to battery backup in under 4 milliseconds–less than a single cycle of the 50Hz AC waveform. This is fast enough to keep sensitive electronics (computers, routers, smart home systems) running without interruption. Combined with the optional backup box and a sufficiently sized battery bank, the inverter provides whole-home backup–not just a few essential circuits.

The backup output delivers 12kVA surge capacity and 10kW continuous output, sufficient to run an entire household: lights, refrigeration, heating controls, internet, TV, and even a kettle or microwave during short outages. For homeowners in rural areas with frequent power cuts, this capability is a major selling point.

Technical Specifications

Safety and Protection Features

TheSinoah 12kW Single Phase Hybrid Inverter includes comprehensive protection systems: PV string current monitoring, insulation resistance detection, residual current monitoring, PV reverse polarity protection, battery reverse polarity protection, anti-islanding protection, AC overcurrent and short circuit protection, DC and AC surge protection Type II, RSD (optional), AFCI, and remote shutdown capability. For installers, this means fewer callbacks. For homeowners, it means peace of mind.

Real-World Application:The Large Detached Home with EV and Heat Pump

Consider a 5-bedroom detached home in the South East with a 12kWp solar array (24×500W panels), an air-source heat pump, and an electric vehicle. The household consumes approximately 8,000–10,000kWh annually–significantly above the UK average of 2,900kWh. A 5kW or 6kW inverter would be undersized for this scenario: during summer, the solar array would generate more than the inverter can process, wasting energy.

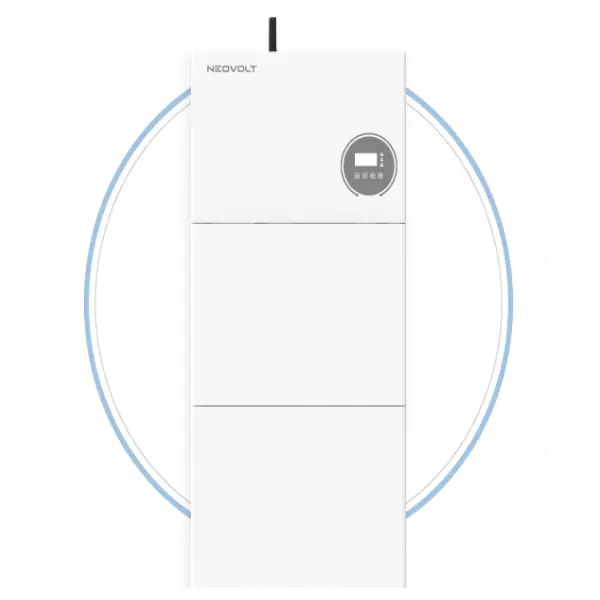

The 12kW Single Phase Hybrid Inverter, with 24kW DC input capacity, captures the full output of the 12kWp array. Paired with a 28kWh or 42kWh NeoVolt battery stack, the system stores surplus summer generation for winter use, charges overnight on cheap Octopus Go rates (7–9p/kWh), and discharges during peak periods (25–35p/kWh). The four MPPT trackers accommodate panels spread across south, east, and west roof slopes–a common configuration for large UK homes.

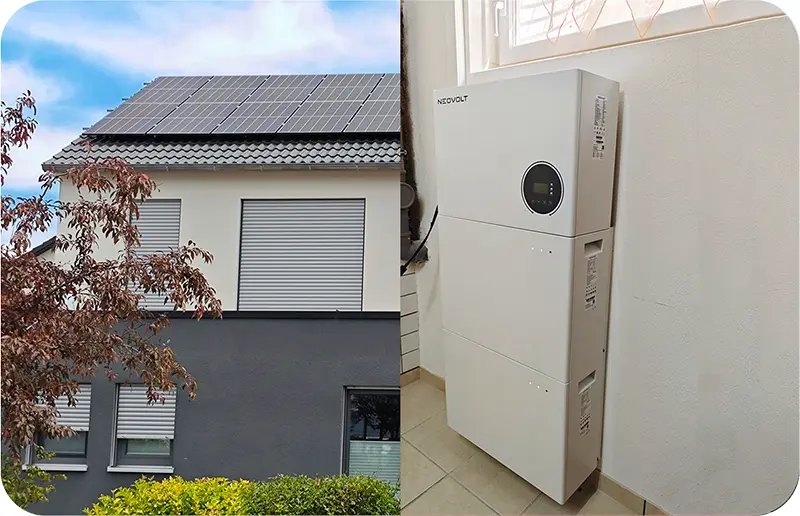

The IP66 rating allows external installation near the meter box, saving valuable internal space. The sub-4ms UPS switching, combined with the backup box, ensures the home stays powered during grid outages–keeping the heat pump running and the EV charged.

Why Choose Sinoah Energy

1. UK Stock, Fast Delivery–Sinoah Energy maintains inventory in our UK warehouse, meaning no shipping delays or customs clearance issues.

2. Factory Direct Pricing–As a direct supplier from NeoVol’’s manufacturing facility, we offer competitive trade pricing without middlemen.

3. 10-Year Warranty–The 12kW hybrid inverter comes with a 10-year warranty, giving installers and homeowners long-term confidence.

4. Technical Support–Our UK-based team provides pre-sales consultation, installation guidance, and after-sales support.

5. G99 Certified–Full UK grid compliance means no commissioning delays.

6. Four MPPT Trackers–Maximum energy harvest from complex roof layouts.

7. IP66 Rated–Suitable for outdoor installation in any UK weather condition.

Ready to add theSinoah 12kW hybrid inverter to your product range?

Call us: 07742 753873

Email: sales@sinoahenergy.com

WhatsApp:sinoahsinoah

Become a trade partner today and access competitive pricing, UK stock, and dedicated technical support.

FAQ:

Q1: Which homes need a 12kW Single Phase Hybrid Inverter instead of a smaller model?

A: The 12kW inverter is for homes with large solar arrays (6kWp+), high energy consumption, or whole-home backup requirements. It suits 4–5 bedroom detached houses with electric vehicles, heat pumps, or multiple occupants with high daytime usage. The 24kW DC input capacity accommodates 20+ panels without clipping, making it ideal for south-facing roofs with maximum solar potential.

Q2: Where can the inverter be installed?

A: The inverter carries an IP66 rating – fully protected against dust and powerful water jets. This means it can be installed outdoors on external walls, in open carports, or garden buildings without concern. The powder-coated steel enclosure withstands driving rain and coastal salt spray, making it suitable for any UK location.

Q3: Does it provide whole-home backup during a power cut?

A: Yes – with the optional backup box installed. The inverter switches to battery power in under 4 milliseconds, keeping sensitive electronics (routers, computers) running without interruption. It delivers 12kVA surge capacity and 10kW continuous backup, enough to run an entire household – lights, fridge, heating controls, internet, TV, and even a kettle during short outages.
