10kW Single Phase Hybrid Inverter

As a trusted supplier to the UK market, Sinoah Energy stocks this 10kW Single Phase Hybrid Inverter in our UK warehouse for fast delivery to installers and trade partners nationwide. With 97.3% peak efficiency, dual MPPT trackers, 200% DC oversizing (20kW PV input capacity), and sub-10ms UPS switching, the 10kW hybrid inverter addresses a critical gap in the UK market: high-power single-phase storage for homes that cannot justify a three-phase connection.

The UK Problem: Single-Phase Homes with High Energy Demand

UK homes are consuming more electricity than ever. Heat pumps are replacing gas boilers. Electric vehicles are appearing on driveways. Induction hobs, tumble dryers, and home offices are adding to peak demand. Yet the majority of UK homes are still on single-phase grid connections–and upgrading to three-phase can cost £3,000–£5,000, with DNO approval taking months.

This creates a problem for homeowners with large solar arrays. A typical 6–8kWp solar system on a south-facing roof can generate 5,000–7,000kWh annually. But a 3.68kW or 5kW inverter will clip that generation–wasting hundreds of pounds of potential solar energy every year.

TheSinoah 10kW Single Phase Hybrid Inverter provides the solution: high-capacity solar and battery management on a single-phase connection, without costly grid upgrades.

What Makes the 10kW Model Different

Most UK single-phase hybrid inverters max out at 5kW or 6kW AC output. The 10kW inverter delivers 10kW continuous AC output on a single phase–enough to power a large home with multiple high-load appliances simultaneously.

But AC output is only half the story. The inverter accepts 20kW DC input (200% oversizing), meaning it can handle a solar array twice its rated output. For a home with a 10kWp solar array spread across south, east, and west roof slopes, the inverter captures the full generation without clipping–even on the sunniest days.

Real-World Application: The 5-Bedroom Home with All-Electric Heating

Consider a 5-bedroom detached home in the South East. The family has:

·An 8kWp solar array (20×400W panels)

·A 9kWh air-source heat pump for heating and hot water

·An electric vehicle (charged at home)

·Annual electricity consumption: 8,000kWh

With a 5kW inverter, the solar array would clip on sunny summer days–losing 10–15% of annual generation. The inverter would also struggle to manage the heat pump load during winter mornings while the EV is charging.

Installing the Sinoah 10kW Single Phase Hybrid Inverter transforms the situation. The inverter captures the full 8kWp array output, even on peak days. It manages the heat pump and EV charging simultaneously, with smart load management prioritising solar power and battery discharge during peak tariff periods. Paired with a 28kWh or 42kWh battery stack, the system reduces the household’s grid import by 70–80%, saving £1,200–£1,500 annually.

200% DC Oversizing: A Practical Advantage

The 10kW inverter’s 20kW DC input capacity is one of its most practical features for UK installations.

Why oversizing matters–UK solar arrays rarely operate at their nameplate rating. Cloud cover, panel soiling, suboptimal orientation, and temperature all reduce actual output. A 10kWp array might only generate 7–8kW on a typical summer day, and 2–3kW on a cloudy winter day.

With 200% oversizing, the inverter can accommodate:

·Future expansion–Homeowners can add more panels later without replacing the inverter.

·Multiple orientations–Panels on east and west roofs peak at different times; the inverter handles both without clipping.

·Seasonal variation–Winter generation is lower, but the large PV input capacity ensures even low winter sun is captured.

For an 8kWp array on a south-facing roof with some east/west spread, the 20kW DC input means clipping is virtually eliminated–capturing 5–10% more annual energy than a 10kW DC input inverter.

Dual MPPT Trackers: Optimising Complex Roofs

The 10kW Single Phase Hybrid Inverter features two independent MPPT trackers, each accepting up to 15A. This supports two solar strings with different orientations–for example, a south-facing string and an east/west string–each operating at its individual maximum power point.

For a home with panels on south and west roof slopes, a single MPPT tracker would force both strings to operate at a compromised voltage, reducing overall generation. With two trackers, each string operates independently, capturing 3–5% more annual energy. Over a 25-year system life, this adds thousands of kilowatt-hours and hundreds of pounds in savings.

Built for UK Installers: What We Learned from the Field

We spoke to a UK MCS-certified installer who specialises in large domestic installations about what makes the 10kW inverter stand out.

“The 10kW unit is a game-changer for big houses on single-phase. Before, we had to either use two 5kW inverters in parallel (which doubles installation time and cost) or tell the customer to upgrade to three-phase (which they never want to do). The NeoVolt 10kW does it in one box.”

Installation time–The unit is slightly larger than the 5kW model (690×240×478mm, 28.5kg), but still wall-mountable by two people. The clear labelling and generous cable entry points reduce wiring time.

Smart forced air cooling–Unlike the smaller models that use natural convection, the 10kW unit uses smart forced air cooling. The fans only activate when needed–silent operation during low-load periods, active cooling during peak summer output. This prevents derating in high temperatures, ensuring the inverter maintains full 10kW output even during heatwaves.

Grid compliance–The inverter is G99 certified, and the 10kW single-phase output is fully compliant with UK DNO requirements. The G99 application is straightforward–no special exemptions or engineering studies required for standard installations.

Self-Heating and IP65: Ready for UK Weather

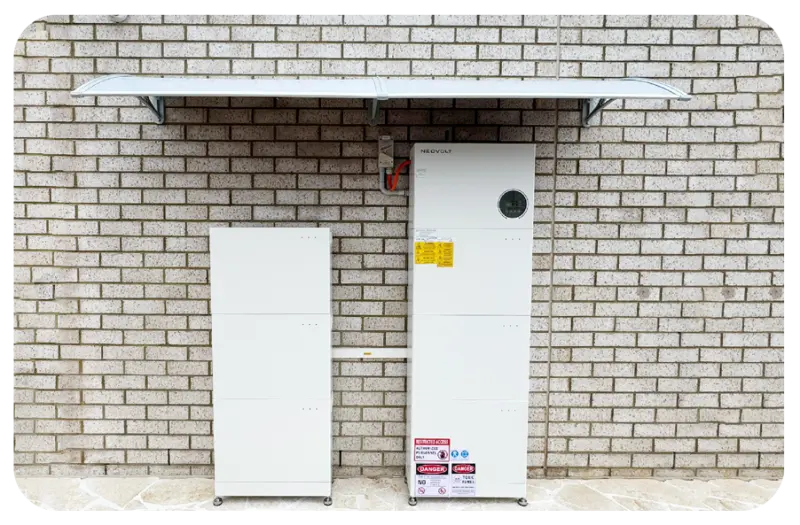

TheSinoah 10kW Single Phase Hybrid Inverter is IP65 rated–protected against dust and low-pressure water jets. It can be installed in garages, utility rooms, or even external walls under a simple overhang. The -25℃to +60℃operating temperature range covers everything from a Scottish winter to a London heatwave.

When paired with NeoVolt batteries, the system benefits from the battery’s self-heating technology–enabling charging even at -20℃. For homes with external installations, this ensures year-round operation without performance degradation.

Safety and Protection: Six Layers of Reliability

The 10kW inverter includes comprehensive protection features that set it apart from budget alternatives:

·PV string current monitoring–Detects mismatched strings and prevents reverse flow

·nsulation resistance detection–Identifies potential ground faults before they become hazards

·Residual current monitoring–Protects against earth leakage

·Anti-islanding protection–Automatically disconnects during grid outages to protect engineers

·DC and AC surge protection (Type II)–Safeguards against lightning strikes and grid surges

·AFCI (Arc Fault Circuit Interrupter)–Detects and extinguishes arc faults in PV wiring

·Remote shutdown capability–Enables emergency disconnection from a safe distance

For installers, this means fewer callbacks and warranty claims. For homeowners, it means peace of mind.

Smart Energy Management: VPP and Tariff Optimisation

The 10kW Single Phase Hybrid Inverter is VPP and FCAS ready, enabling participation in grid services when the UK market matures. More immediately, it supports smart tariff optimisation–the core reason UK homeowners install battery storage.

Through the NeoVolt App, installers can program charge/discharge schedules aligned with time-of-use tariffs. For a 10kW inverter paired with a 28kWh battery:

·Octopus Go (9p/kWh overnight, 28p/kWh peak)–Charge 28kWh overnight (£2.52), discharge during peak periods (£7.84), gross saving £5.32 per cycle = £1,942 per year

·Octopus Agile (variable)–The inverter can follow the half-hourly price signals, charging when prices are negative or low, discharging when prices spike

This tariff optimisation, combined with solar self-consumption, delivers a strong return on investment–typically 8–10 years for a 10kW inverter + 28kWh battery system.

Technical Specifications

Why Choose the 10kW from Sinoah Energy

1. High Power on Single Phase–The 10kW output delivers large-home performance without three-phase upgrade costs–saving customers £3,000–£5,000 in grid upgrade expenses.

2. UK Stock, Fast Delivery–Sinoah Energy maintains inventory in our UK warehouse, meaning no shipping delays or customs clearance issues.

3. Factory Direct Pricing–As a direct supplier from NeoVolt’s manufacturing facility, we offer competitive trade pricing without middlemen.

4. 10-Year Warranty–The 10kW hybrid inverter comes with a 10-year warranty, giving installers and homeowners long-term confidence.

5. Technical Support–Our UK-based team provides pre-sales consultation, installation guidance, and after-sales support.

6. G99 Certified–Full UK grid compliance means no commissioning delays.

7. 200% DC Oversizing–Accepts up to 20kW solar input, accommodating large arrays and future expansion without clipping.

Trusted by Installers Across the UK

Sinoah Energy has supplied NeoVolt 10kW hybrid inverters to solar installers, electrical contractors, and renewable energy specialists across the UK. Our customers range from sole traders fitting 2–3 systems per month to national distributors supplying hundreds of units annually.

With over 10 years of experience in the lithium battery and energy storage industry, our factory has the production capacity and quality control systems to meet growing demand. Every inverter undergoes rigorous testing before leaving the factory–including insulation testing, grid simulation, and communication validation.

Ready to add the NeoVolt 10kW hybrid inverter to your product range?

Call us: 07742 753873

Email: sales@sinoahenergy.com

WhatsApp:sinoahsinoah

Become a trade partner today and access competitive pricing, UK stock, and dedicated technical support.

FAQ:

Q1: Why choose a 10kW inverter instead of a 5kW or 6kW model?

A: A 5kW or 6kW inverter will clip generation from a large solar array (6–8kWp+), wasting 10–15% of annual solar output. The 10kW unit accepts 20kW DC input (200% oversizing), capturing the full generation from arrays up to 10kWp. It also delivers enough power for homes with heat pumps, EV charging, and multiple high-load appliances simultaneously – without upgrading to three-phase.

Q2: Can a 10kW Single Phase Hybrid Inverter run on a standard UK single-phase connection?

A: Yes. The 10kW output is fully compliant with UK single-phase DNO requirements. Unlike three-phase systems that require costly board upgrades, the NeoVolt 10kW hybrid inverter connects to a standard single-phase supply. G99 certification is included, and the application process is straightforward – no special exemptions required for standard installations.

Q3: What size solar array can I connect to this inverter?

A: The inverter accepts up to 20kW DC input (200% oversizing) – enough for a 10kWp solar array with room for future expansion. With dual MPPT trackers (15A each), you can connect two strings with different orientations (e.g., south and west roofs) for maximum energy harvest. Even on the sunniest UK days, clipping is virtually eliminated.
