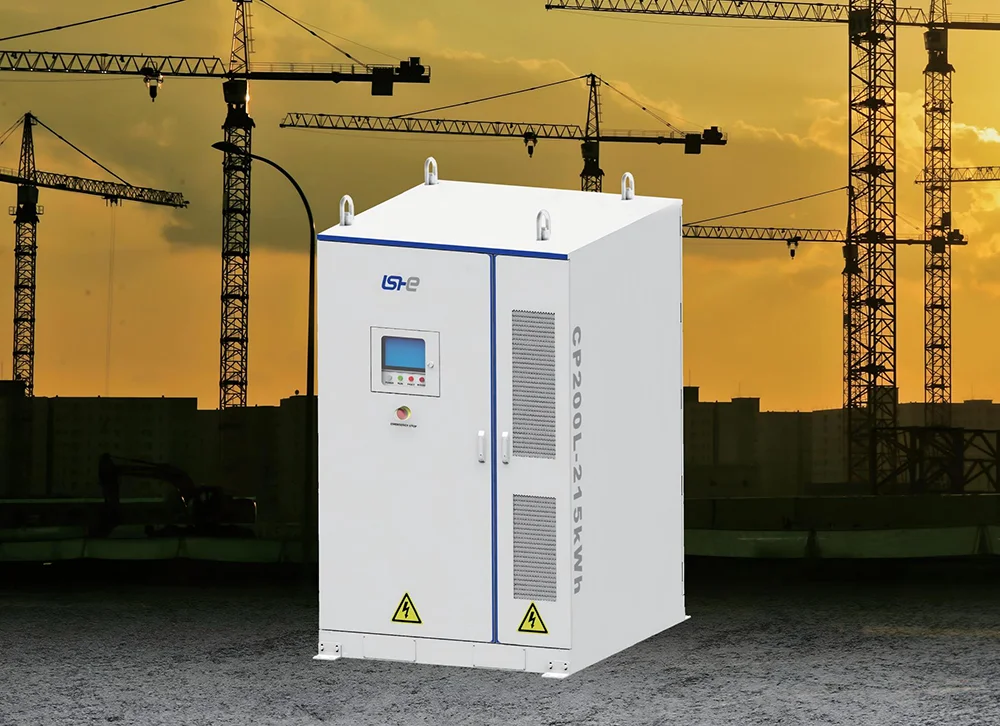

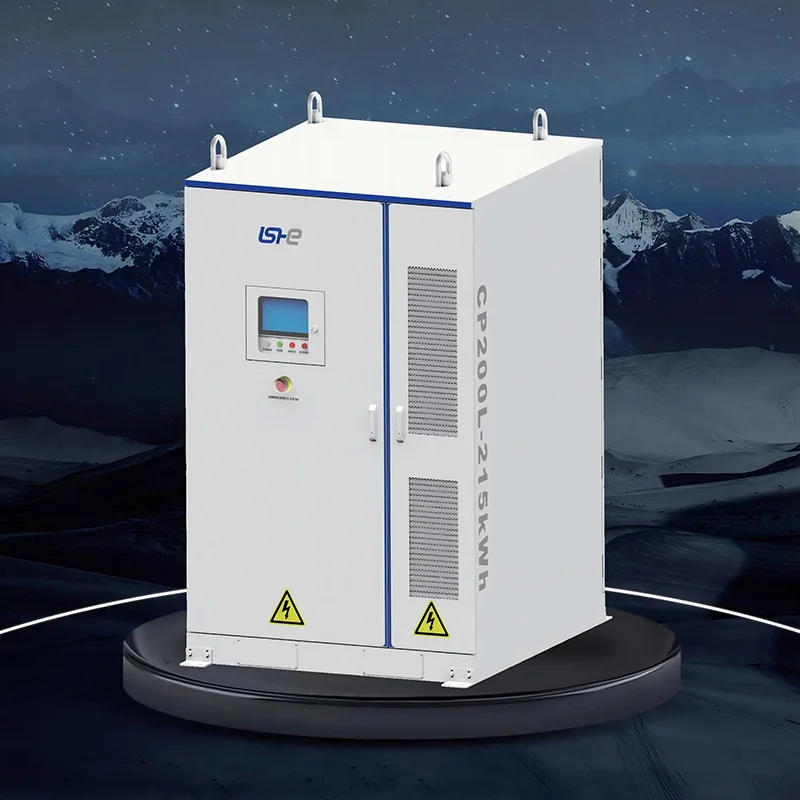

100kW 215kWh Liquid-Cooled Commercial Energy Storage System

As a trusted UK supplier, Sinoah Energy stocks this complete BESS solution for fast deployment to commercial sites nationwide. With 10-year cell warranty, modular scalability up to 2150kWh, and IEC/CE certifications, the Sinoah 100kW 215kWh Liquid-Cooled Commercial Energy Storage System is the smart choice for businesses serious about energy cost reduction and operational resilience.

The Business Case: Why UK Companies Are Installing Energy Storage

UK commercial electricity tariffs are built around two components: energy consumption (the kWh you use) and peak demand charges (the highest power you draw from the grid at any moment). For many businesses, peak demand charges can account for 30–40% of the total electricity bill. A single spike in power usage – starting machinery, running ovens, or charging multiple EVs simultaneously – can set the demand charge for an entire month.

Battery energy storage systems are changing this equation. By discharging stored energy during peak periods and charging during off-peak hours, businesses can flatten their demand profile and significantly reduce both energy consumption costs and demand charges. A 2025 business analysis shows commercial Energy Storage systems typically achieve payback in 3–5 years. The UK commercial solar market added 450 MW of capacity in 2025 alone, and the fundamentals driving this growth are only getting stronger.

The Sinoah 100kW 215kWh Liquid-Cooled Commercial Energy Storage System is purpose-built to capture these savings. With a rated power of 100kW and 215kWh of usable storage, this system is the ideal entry point for UK SMEs, farms, warehouses, hotels, and retail operations looking to cut electricity costs and improve energy resilience.

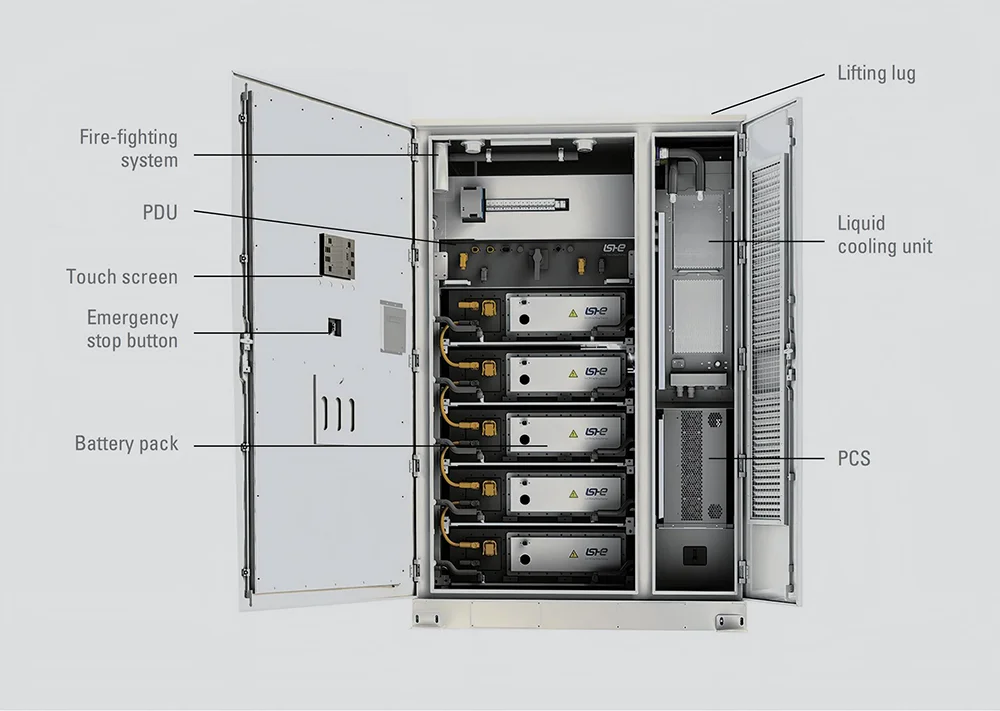

What’s Inside: All-in-One, Fully Integrated Design

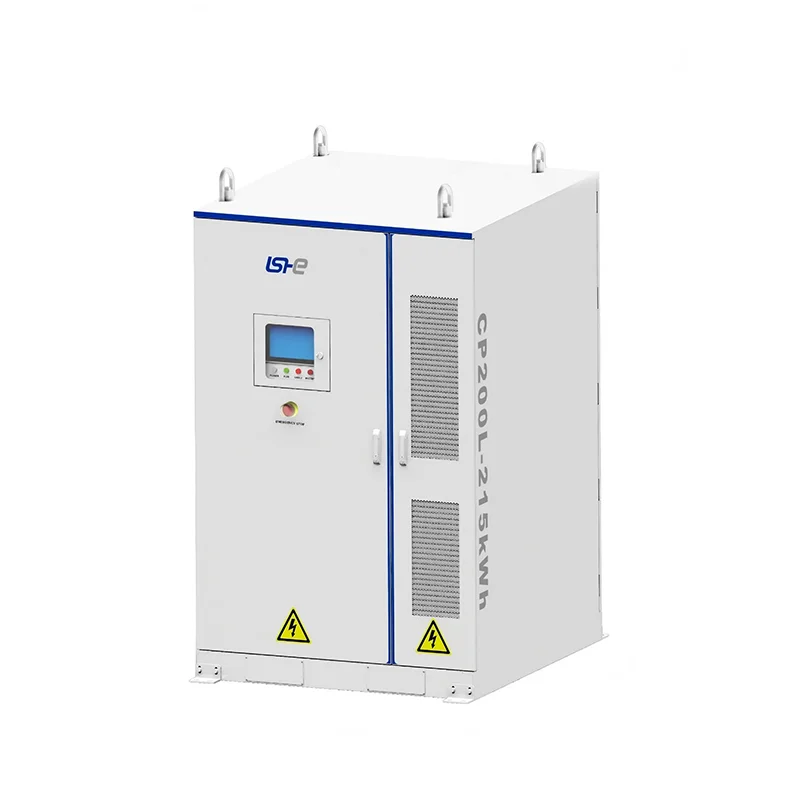

The Sinoah 100kW/215kWh system is a fully integrated energy storage cabinet that combines multiple subsystems into a single, compact enclosure:

· Battery System – LFP 3.2V/280Ah cells configured as 1P240S, delivering 672–864Vdc, 215kWh capacity

· PCS (Power Conversion System) – 100kW bidirectional converter with 110kW peak output capability

· BMS (Battery Management System) – Multi-layer battery protection with passive equalisation and real-time monitoring

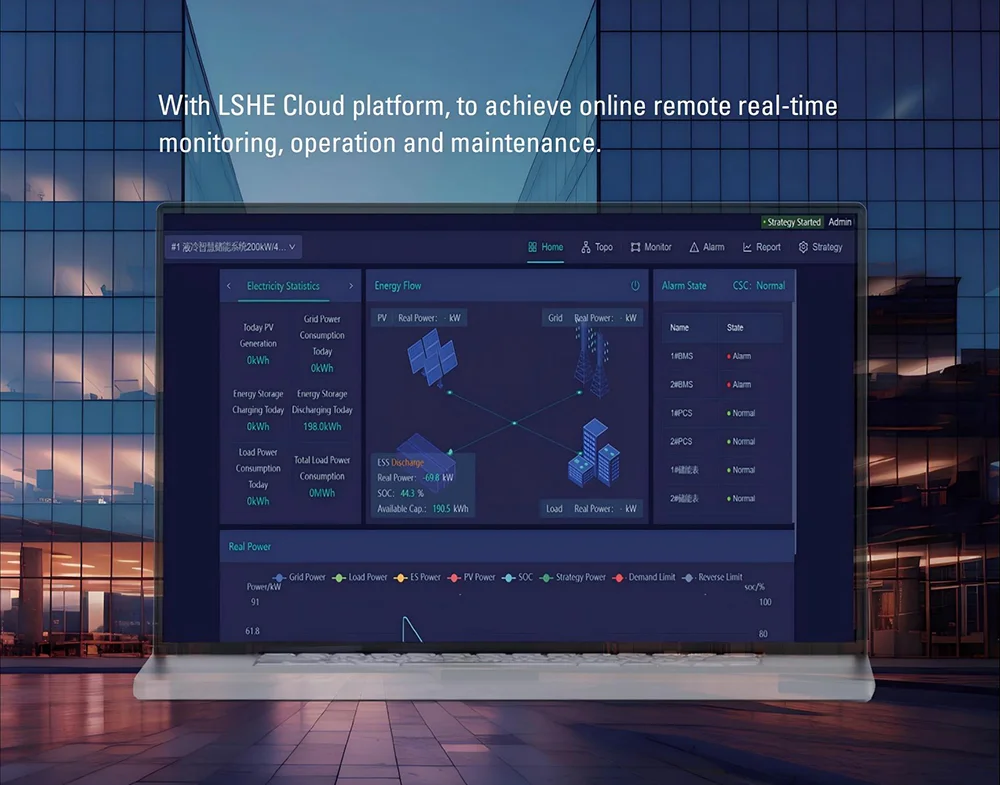

· EMS (Energy Management System) – Intelligent control for peak shaving, load shifting, and tariff optimisation

· Liquid Cooling Unit – Advanced liquid cooling with 8-year maintenance-free operation

· Fire Protection System – PACK-level aerosol/perfluorohexanone fire suppression

· Power Distribution – Integrated circuit breakers, surge protection, and metering

The system is designed for rapid deployment – delivered pre-assembled and factory-tested, requiring only site preparation and electrical connection.

Four Application Modes: One System, Multiple Revenue Streams

Mode 1: Peak Shaving & Load Shifting (Energy Arbitrage)

This is the primary application for most UK businesses. The system charges during low-cost off-peak periods (typically overnight) and discharges during peak tariff periods. For a business on a Time-of-Use tariff, the savings are substantial:

· Charge 215kWh overnight at 9–12p/kWh

· Discharge during peak periods at 25–35p/kWh

· Gross saving: £35–£50 per full cycle

Over a year of daily cycling, this translates to £12,000–£18,000 in electricity cost savings alone.

Mode 2: Emergency Power Supply (EPS)

When the mains power fails, the system automatically switches to off-grid mode, providing seamless backup power to critical business operations. The system supports black start capability – even in a complete grid outage, it can restart and power your business.

Mode 3: PV + Storage Integration

For businesses with solar panels, the system integrates seamlessly. Solar power is prioritised for immediate consumption, with surplus stored in the battery for use during evening or peak periods. This maximises the return on your solar investment and can push solar self-consumption from 40% to 90%+.

Mode 4: PV + Storage + EV Charging

Support EV charging infrastructure without expensive grid upgrades. The system buffers energy demand, allowing you to install EV chargers without upgrading your grid connection.

Advanced Liquid Cooling: Why It Matters for UK Commercial Sites

The Sinoah 100kW system uses advanced liquid cooling technology – a significant upgrade over traditional air-cooled systems.

1.Uniform Temperature Control

Liquid cooling maintains a consistent operating temperature across all battery cells, ensuring each cell performs optimally. This extends battery life and improves overall system efficiency.

2.Higher Energy Density

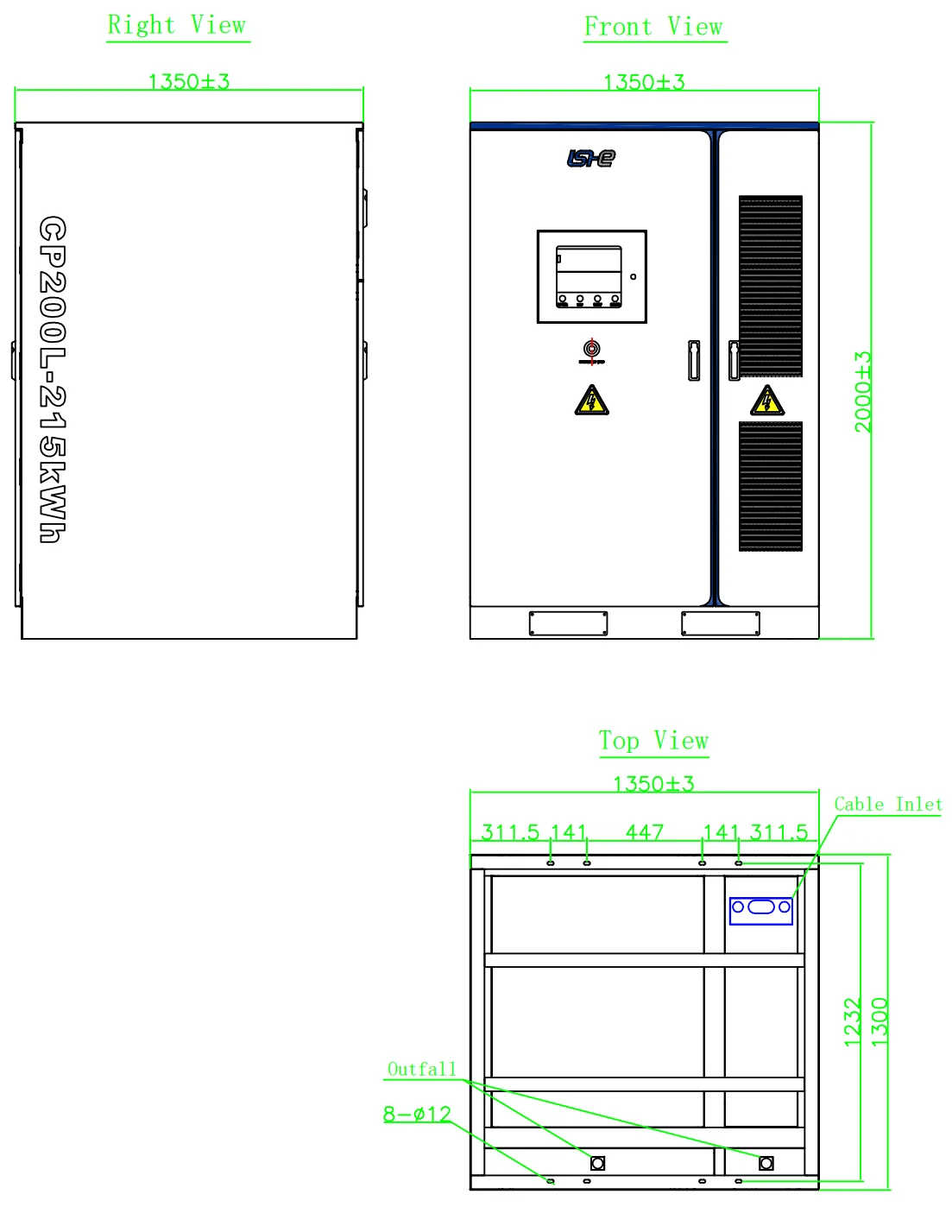

Liquid cooling allows more compact system design. The 100kW/215kWh system fits in a single 1350×1350×2000mm cabinet, occupying minimal floor space.

3.8-Year Maintenance-Free

The liquid cooling system is designed for 8 years of maintenance-free operation, reducing ongoing service costs.

4.UK Weather Ready

The system operates in ambient temperatures from -30°C to +55°C, making it suitable for outdoor installation in any UK location. IP54 protection ensures dust and water resistance.

Safety: Multi-Layer Protection

The Sinoah 100kW system incorporates multiple layers of safety protection:

1. PACK-Level Fire Protection

Each battery pack is equipped with aerosol or perfluorohexanone fire suppression. When a fire is detected, the system activates within seconds.

2. RACK-Level Protection

A secondary protection layer covers the entire battery rack, providing redundancy in case of thermal runaway.

3. BMS Multi-Layer Protection

The battery management system provides over-voltage, under-voltage, over-current, over-temperature, and short-circuit protection for every cell.

4. Emergency Stop

A clearly marked emergency stop button on the front cabinet immediately disconnects all power circuits.

5. Global Certifications

The system meets international safety standards including IEC 62619, IEC 63056, IEC 62477-1, IEC 60730-1, EN 61000-6-2/-4, VDE-AR-N4105, CEI 0-21, and EN 50549-10.

Real-World Application: The Warehouse That Cut Energy Costs by 35%

There’s a 50,000 sq ft warehouse in the Midlands with a 250kW solar array, a fleet of 10 electric forklifts, and annual electricity consumption of 400,000kWh. The business is on a Time-of-Use tariff with peak rates of 32p/kWh and off-peak rates of 11p/kWh.

Before installation – The warehouse’s peak demand regularly spikes to 180kW during afternoon operations, triggering high demand charges. Solar generation during the day is partially exported at low rates.

After installation – The Sinoah 100kW / 215kWh system is installed adjacent to the main electrical room. The EMS is configured for peak shaving and solar optimisation:

· Peak shaving – The system discharges during afternoon peaks, reducing demand from 180kW to under 100kW. This alone saves £8,000 annually in demand charges.

· Solar capture – Surplus solar generation (previously exported) is stored in the 215kWh battery for evening use. This increases solar self-consumption from 55% to 88%, saving an additional £14,000 annually.

· Tariff arbitrage – The system charges overnight at 11p/kWh for the following day’s operations, capturing the 21p/kWh difference.

Total annual savings: £22,000+. The 10-year cell warranty means the system continues delivering savings for a decade or more.

Technical Specifications

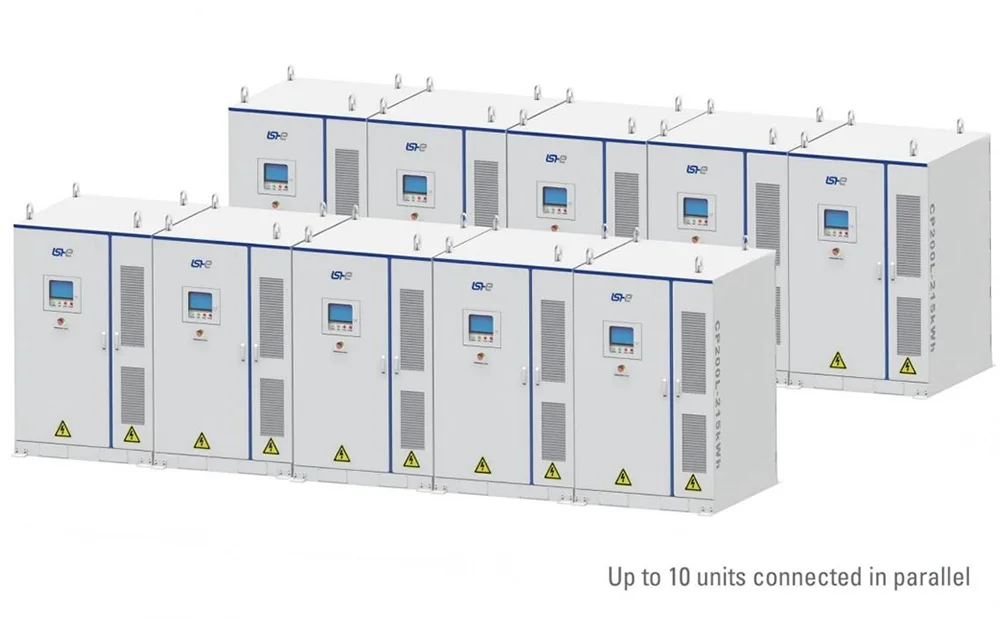

Scalability: From 215kWh to 2150kWh

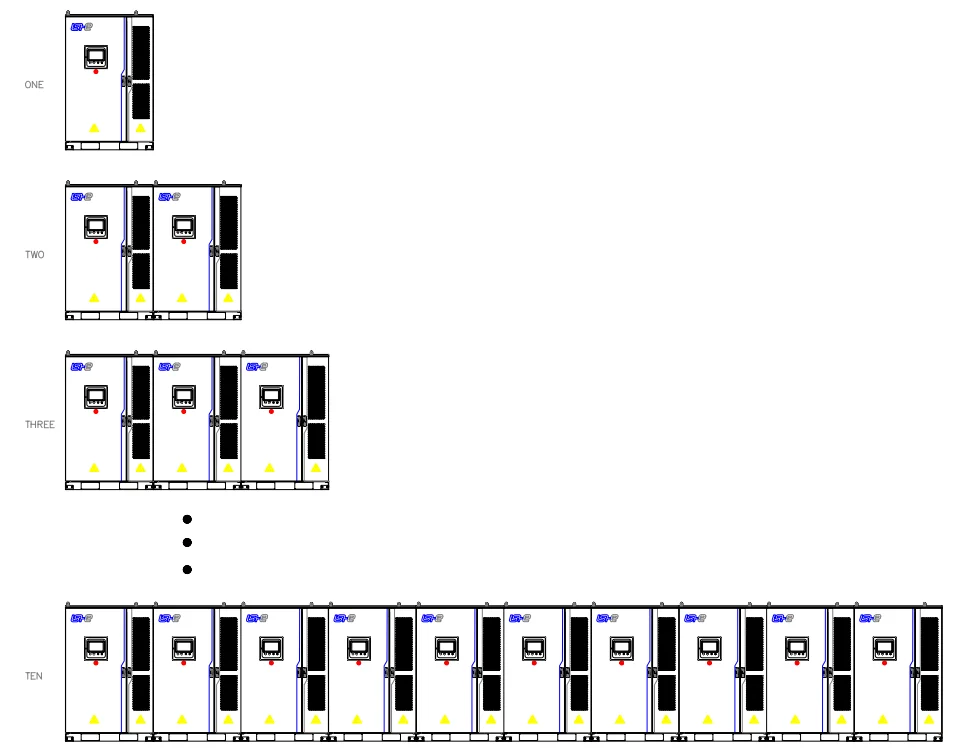

The Sinoah 100kW system supports parallel expansion – up to 10 units can be connected at a single grid interconnection point. This means you can start with a single 100kW/215kWh system and scale up to 1000kW/2150kWh as your business grows, without replacing existing equipment.

The modular, expandable design makes it suitable for a wide range of commercial applications:

· Small shops, cafes, clinics – 1 unit (100kW / 215kWh)

· Farms, warehouses, hotels – 2–3 units (200–300kW / 430–645kWh)

· Large industrial sites, EV charging hubs – 5–10 units (500–1000kW / 1075–2150kWh)

Why Choose Sinoah Energy as Your C&I Storage Partner

1. UK Stock, Fast Deployment – Sinoah Energy maintains inventory for fast delivery to commercial sites nationwide.

2. Factory Direct Pricing – Competitive pricing without middlemen, direct from the manufacturer.

3. 10-Year Cell Warranty – Long-term confidence for your business investment.

4. UK Technical Support – 24-hour response for domestic issues, 48-hour response for overseas.

5. Fully Integrated System – One supplier, one warranty, one point of contact.

6. Certified Quality – Full IEC, CE, and VDE certifications with complete traceability.

7. Liquid Cooling Technology – 8-year maintenance-free cooling system reduces ongoing costs.

8. Scalable Design – Expand from 215kWh to 2150kWh as your business grows.

Ready to reduce your business energy costs with the 100kW 215kWh Liquid-Cooled Commercial Energy Storage System?

Contact us and request a free site survey and commercial storage quote today.

FAQs:

Q1: How much can a 100kW/215kWh system save my business annually?

A: Typical annual savings range from £12,000 to £22,000+ depending on your tariff structure, consumption patterns, and whether you have solar PV. Peak shaving alone can reduce demand charges by 20–40%, while tariff arbitrage captures 15–20p/kWh differences. Most commercial systems achieve payback in 3–5 years.

Q2: How much space does the system require?

A: The system occupies a single 1350×1350×2000mm cabinet – approximately the footprint of a standard parking space. Outdoor installation requires a concrete base (minimum 250mm height) and 500mm clearance front and rear for maintenance.

Q3: Can the system be installed outdoors?

A: Yes. The system is IP54 rated and operates in ambient temperatures from -30°C to +55°C. Outdoor installation requires a flat, level concrete base with appropriate weather protection for cable entries.

Q4: What happens during a power cut?

A: The system automatically switches to off-grid mode, providing seamless backup power to your business. The system supports black start capability – even in a complete grid outage, it can restart and power your operations.
